UMB100H – one channel with up to 100 meters operating range (433,92 MHz).
One relay output channel universal remote control.
It is widely used in alarm systems for remote starting of entry delay, system arming/disarming, access control and as personal panic button.
Transmissions sent from the remotes are KEELOQ® dynamic code encrypted allowing highest level of security.
The receiver can operate with up to 12 remotes at a time (up to 112 on option) and provides one programmable and isolated from power supply NO/NC (NO-normally opened, NC-normally closed) relay output and one external beeper/siren output S.
Receiver’s outputs are provided with terminals for easy wiring of external devices. The relay output action may be latched (on/off) or time-lapse mode operating depending on programming made by the user.
The S output (open collector type) is for connecting external siren or beeper device and delivers two short pulses (two beeps) on relay set and one (one beep) on relay reset.

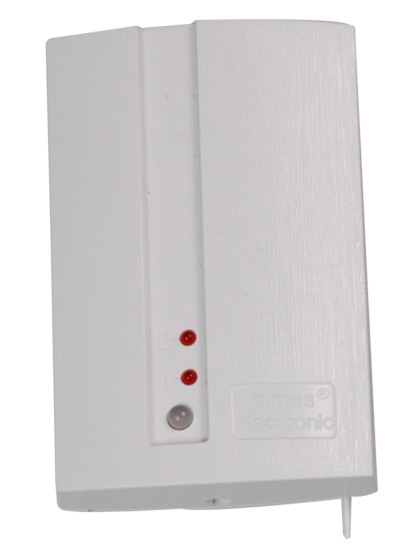

The receiver features built in bi colour LED that is used for programming and signaling relay set (changes color). The set may be optionally ordered with super heterodyne receiver (UMB100Hhet) offering better operating range and greater rejection of interfering radio signals.

Receiver super regenerative (UMB100HR) or super heterodyne (UMB100HRhet)
Power supply 12VDC ±15%, current 20mA at standby or 20mA on relay set
One relay output NO/NC handling 60VA (128VAC/1A)
ON/OFF (bi stable output mode)
Automatic OFF after programmed time (mono stable output mode timing: from 0,25s up to 4 hrs)
Anti-sabotage TAMPER switch with terminals
Operating temperature range: 0 do +40ºC (-20 to +40ºC for AN200HRhet);
External dimensions: (L/W/D) 96/63/28mm

Download Manual

The set is used in alarm systems for remote starting of entry delay, system arming/disarming and access control.
Control signals from the remotes are KEELOQ® dynamic code encrypted providing highest level of security.

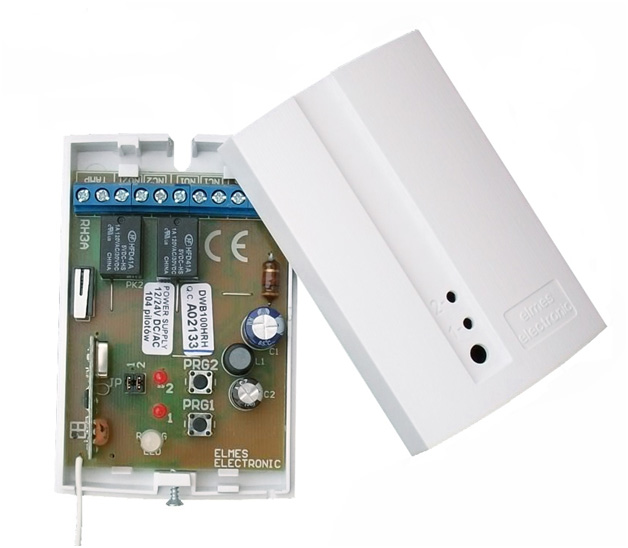

The receiver can operate with up to 12 remotes at a time (up to 112 on option) and provides two programmable and isolated NO/NC (NO-normally opened, NC-normally closed) relay outputs and external beeper control output S. Outputs are terminals equipped allowing easy connection of external devices.
The output relay action may be latched (on/off) or time-lapse (pulse) mode depending on programming made by the user. The S output (open collector type) is for connecting external signaling device and delivers two short pulses (two beeps) on relay set and one (one beep) on relay reset.
The receiver features bi colour LED used for programming indication and first channel relay set. Two other LED diodes indicate channel 1 & 2 outputs set on.
The set is optionally available with super heterodyne receiver (DWB100Hhet) offering better operating range and additional, real-time output mode meaning that receiver’s output remains set on for as long as the remote transmitter’s button is pressed and control transmission send.
ON/OFF (bi stable output mode).
Automatic OFF after programmed time (monostable output mode timing: from 0,25s up to 4 hrs).
Winch mode ( the receiver is ON for as long as keyfob is pressed).

DWB100HRhet at12VDC: 12 mA + 28 mA every relay set on,DWB100HRhet at 24VDC: 6 mA + 14 mA every relay set on,
Operating temperature range from -20 to + 40C,
Signal output S (1A/60V max.) OC type,
Sabotage alarm terminals NC type (at box closed)
External dimensions: (L/W/D) 96/63/28mm.

Download Manual

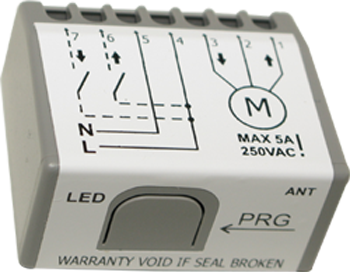

STM receiver is designed to control one roller 230VAC electric induction motor with limit switch.
Very small size of the receiver enables its installation under a wall switch inside the junction box 60mm deep.
It may also be installed inside the housing of the roller.
STM includes superheterodyne radio receiver, KEELOQ® dynamic code encryption and is compatible with the following Elmes Electronic keyfob/hand transmitters: DWB100T, DW200HT, CH4HT, CH4H200T, CH8HT, CH32HT.Note: It is not compatible with UMB100HT.
