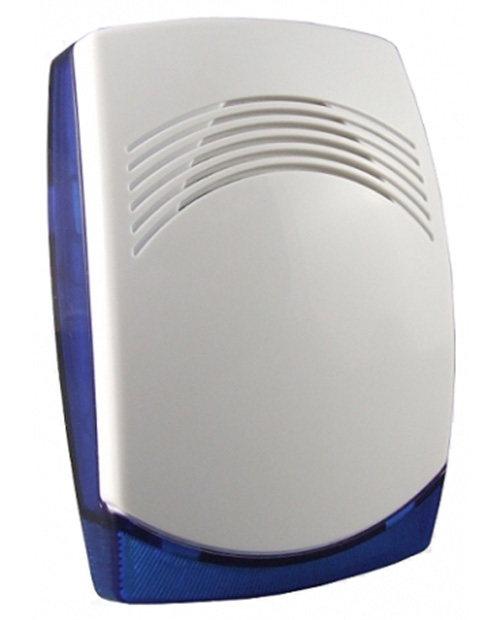

Indoor Siren

  • This remotely powered sounder features a piezo sounder and two bright LED’s for audible and visual indication. The sound output is selectable for either alternating or continuous tone. It is also protected against tampering by means of lid removal and removal from the mounting surface.
Technical Specification
  • Low profile design
  • 115dB Sound output
  • Selectable alternating or continuous tone
  • Flashing alarm indication
  • Low current consumption
  • Tamper protected lid and mounting

Outdoor Siren

WSS – Outdoor Siren and Strobe

  • Elmes WSS siren and strobe is alarm signaling device with loud siren and strobe light designed for outdoor installation in alarm and security systems.
  • In addition to its alarming functions the siren features system arming and disarming confirmation sounds allowing home or property owner to external signaled arming and disarming of the system with the use of a key-fob remote control transmitter, just like remote setting on & off of a car alarm.
  • Microprocessor’s control of the WSS siren along with two-way transceiver communication with Elmes CB32 control panel enable remote selection of siren’s functions using control panel keypad.
  • Though the siren is a fully supervised device dedicated to use with Elmes CB32 panel, it may also be used in any alarm system, also hard-wired, when installed with optional "wired-to-wireless" interface module Elmes WSM.
  • Commands and monitoring signals receipt are confirmed for security reasons. Other important features include anti-sabotage instant alarming and AC power supply failure notification.
  • Included with the siren 12V/1.2Ah rechargeable battery is the master source of power supply to the siren and the strobe light both in normal operation and in case of AC power failure.
  • The battery is charged by an external 230VAC/12VDC-100mA power pack (included) plugged into 230VAC mains outlet. The Elmes WSS siren & strobe may also be powered from wired alarm 13.8VDC power line or any external 13.8VDC battery backup power supply.
Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA
  • EU standards compliant 433,92MHz transceiver
  • 120dB siren and strobe light with anti-sabotage protection
  • Microprocessor controlled CE433,92MHz transceiver;
  • Average range: 200m in open field
  • Two way communication system
  • Mains power pack 16VDC/100mA and 12V/1.2Ah battery Included.
  • Compatible directly with CB32 v 2.10 or higher versions
  • Compatible with any wired alarm panel via WSM control module
  • Operating temperature range from -20 to + 40C,
  • External dimensions: (L/W/D) 260/145/82mm.
