Wireless Detectors

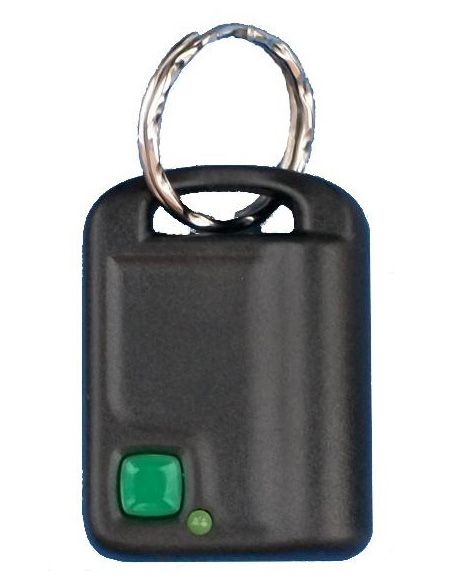

UMB100HT – One Channel Keyfob Transmitter

ELMES key fob and Hand held transmitters are compatible with wide range of Elmes Receivers.

  • Operating frequency band is 433,92MHz.
  • Number of channels: 1
  • 3-5mW transmits power.
  • GP23A 12V battery.
Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA
  • Average range: 100m in open field
  • Power supply: alkaline battery 12V, type GP23A
  • Operating temperature range from -20 to + 40C,
  • External dimensions: (L/W/D) 46/34/14mm

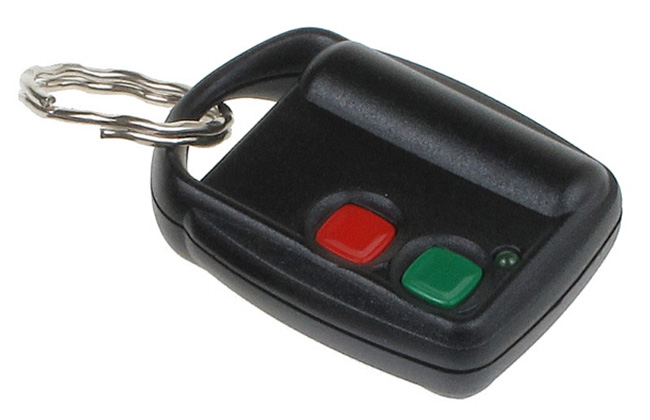

DWM50HT – Two Channel Transmitter (Mini Type)

  • Dynamic code system KEELOQ of Microchip Corp. USA.
  • Operating frequency: 433,92 MHz.
  • Number of channels: 2.
  • Approximate range in open field: 50m.
  • ON/OFF (bistable output mode).
  • Operating temperature range from 0 to + 40C.

DWB100HT – Two Channel Transmitter

  • Operating frequency band is 433,92MHz.
  • Number of channels: 2.
  • 3-5mW transmit power.
  • GP23A 12V battery.
Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA.
  • Average range: 100m in open field.
  • Power supply: alkaline battery 12V, type GP23A.
  • Operating temperature range from -20 to + 40C.
  • External dimensions: (L/W/D) 46/34/14mm.

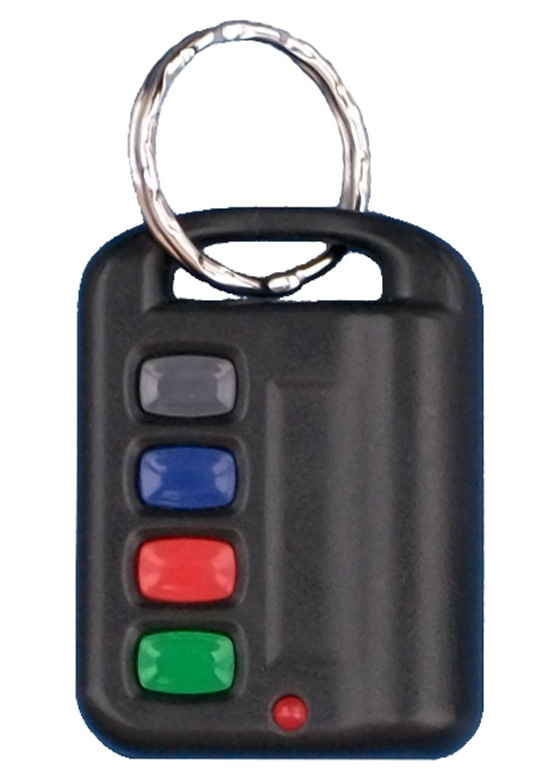

CH4HT Four Channel Transmitter

  • Operating frequency band is 433,92MHz.
  • < 5mW transmit power.
  • GP23A 12V battery.
  • Size H/L/W (mm): 50/37/14mm.
Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA.
  • Operating frequency: 433,92 MHz.
  • AvErage range: 100m in open field.
  • power supply: alkaline battery 12V, type GP23A.
  • average batter life time: 2 – 3 years.
  • number of channels: 4.
  • operating temperature range from -20 to + 40C.
  • external dimensions: (L/W/D) 50/37/14mm.

AN200HT – One Channel Transmitter

  • Operating frequency band is 433,92MHz.
  • < 10mW transmit power.
  • 9V battery.
  • Size H/L/W (mm): 113/33/21mm.
Technical Specification
  • Dynamic code system KEELOQ of Microchip Corp. USA
  • Operating frequency: 433,92 MHz.
  • Approximate range in open field: 200m.
  • ON/OFF (bistable Mode).
  • Operating temperature range from 0 to + 40C.

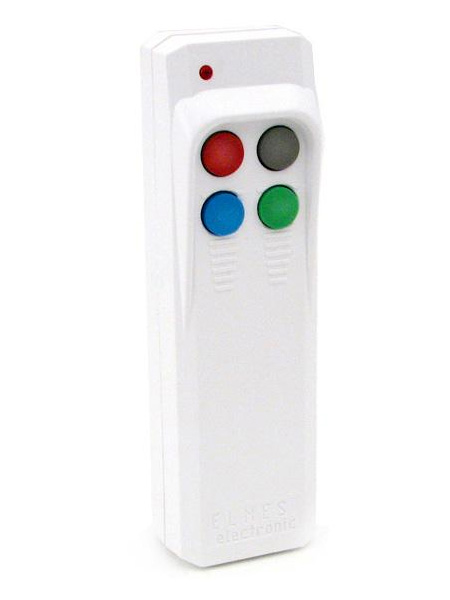

CH4H200T Four Channels Transmitter

  • Operating frequency band is 433,92MHz.
  • < 10mW transmit power.
  • 9V battery.
  • Size H/L/W (mm): 113/33/21mm.
Technical Specification
  • Dynamic code system KEELOQ® of Microchip Corp. USA
  • Operating frequency: 433,92 MHz
  • Average range: 200m in open field
  • Power supply: 9V battery
  • Average batter life time: 2 - 3 years
  • Number of channels: 4
  • Operating temperature range from -20 to + 40°C,
  • External dimensions: (L/W/D) 113/33/21mm
